Product Feature

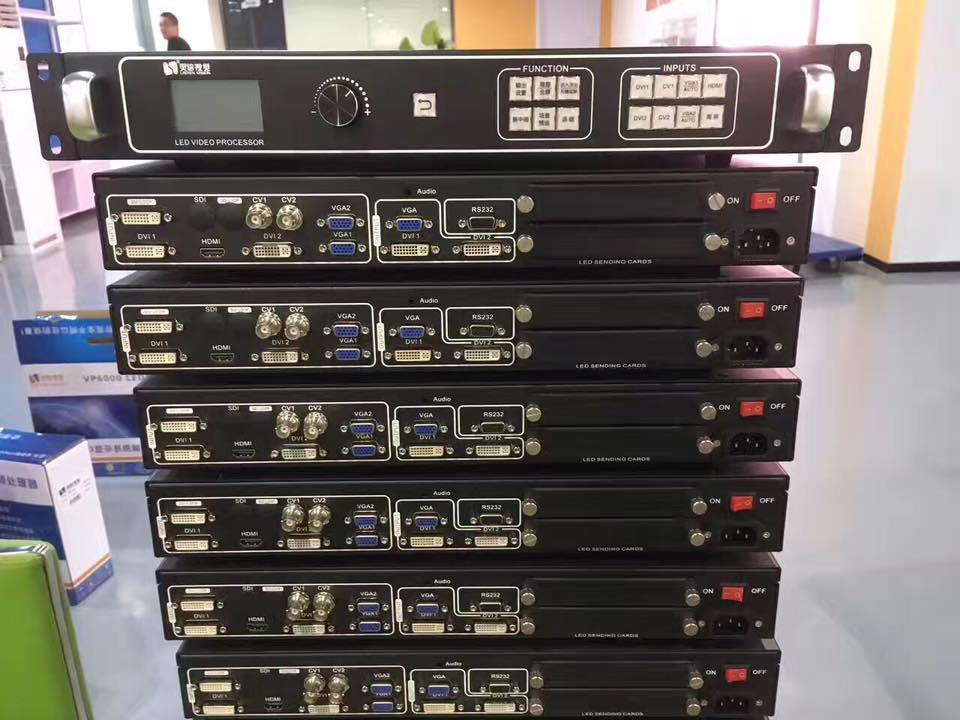

LS-VP6000 LED Video Processor , has 8 channels of video input, 3 channels of video output，1 channel of DVI loop out,1 channel of audio input,1 channel of audio output .
Which can be widely used in engineering , rental performance ,irregular/large LED display screen/mixed LED display(different spacing),large stage theater,display and exhibition, etc.
Seamless switching/Fade-in-fade-out:
Pictures from 2 channels can be switched seamless, also can be fade-in-fade-out
Multiple video interface: (SDI optional)
Input 2xVGA,2xDVI,1xHDMI,2xCV ;Output 1xVGA,2xDVI, 1xDVI(loop out); 1XCRA;
1 channel of audio synchronous switching (HDMI audio decoder)
Multiple output resolution :
Many resolution can be selected (Max.3840x1920@60Hz) and user-defined resolution
2.65 million pixels supported:
Max.height can be 1920pixels, max. vertical can be 3840pixels
Preset storage and recall:
Can switch to the saved scene quickly
Chroma Key :
Cut part image from one video ,then put it on another video, for example image overlapped
Support picture in picture (PIP) :
The size and location of the 2 pictures can be adjustable
Powerful Splicing function :
Perfectly splicing,support Uniform and not uniform splicing, support 10X10 video processors to splicing
User-defined input resolution :
Can perfectly realize the PC to LED screen point to point display
