Item |
Parameter |
|
Model |

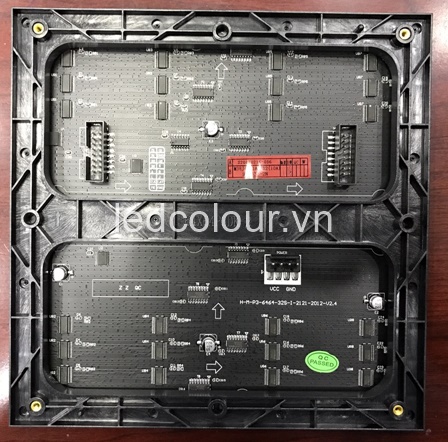

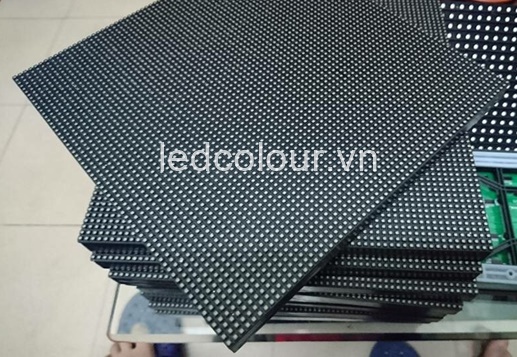

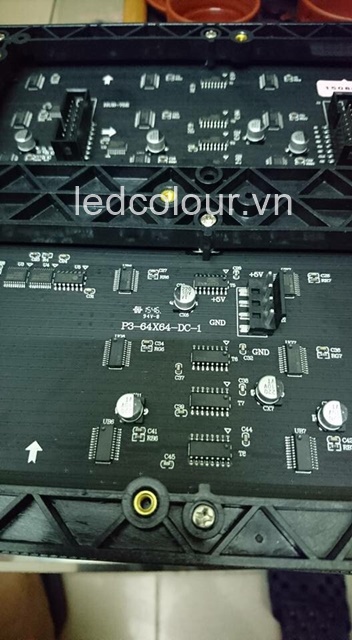

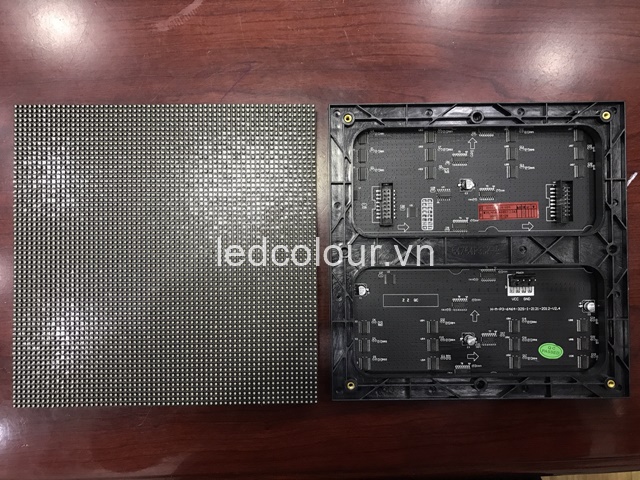

P3-SMD |
|
Pixel Pitch （mm) |
3mm |
|
Pixel Density |
111111 (dot/㎡) |
|
LED Standard |
SMD2121 |
|
Pixel Configuration |
1R1G1B |
|
Brightness |
≥1500CD/㎡ |
|
LED Module Size |
192*192*H mm |
|
LED Cabinet Size |
576*576*H mm |
|
Module Thickness |
|
|
Module Resolution |
64*64=4096(dot) |
|
Cabinet Resolution |
192*192(dot) |
|
Module QTY /Cabinet |
9pcs |
|
Module Weight |
|
|
Cabinet Weight |
|
|
LED Parameter |
R:λd(620*625nm)IV:(120-150mcd) |
|
G:λd(520-522.5nm)IV:(220-286mcd) |
|
|
B:λd(467.5-470)IV:(60-75mcd) |
|
|
Communication |
Internet cable (≤120M)/fiber optical (10.000m) |
|
Control Mode |
Synchronization control |
|
Driving Method |
Constant current drive |
|
Scan Mode |
1/32 scan |
|
Display Colors |
687(million) |
|
View aAgle(H/V) |
H:+/-150° V:+/-120° |
|
Visual Range |
2-20m |
|
Display Mode |
640*480/800*600/1024*768 |
|
IP Grade |
IP31 |
